Products

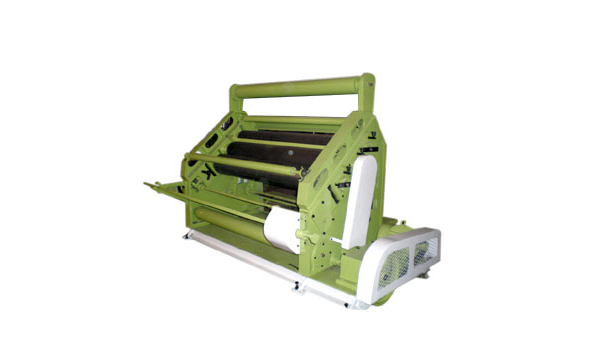

Two Profile High Speed Single Facer Paper Corrugation Machine

Specifications

Single Facer is a bod Nes Design, it offers high rate of production and enhanced efficiency. The rolls anr mounted on roller bearing for smooth rinning and longer life, minutely finished Flute Folls result in pergect formation of Flutes, Lubrication system based on high temperature fluorinated grease which solves a long standing industry provlenwith recirculating oil lubrication system, with elimination of lubricating oil system, the wastage of oil and leakage on the floor is prevented. Two Pre Heaters are provided with the Machine.

SIZE Output P.M Power (H.P.) Heating Load
52" 120 ft 8.5 H.P. 33 K.W.
62" 120 ft 11 H.P. 39 K.W.
75" 120 ft 15 H.P. on steam

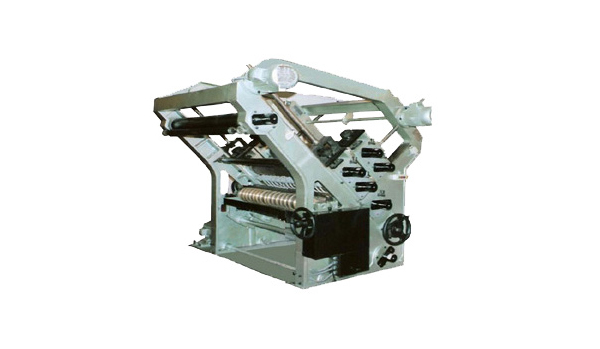

Oblique Type High Speed Single Facer Paper Corrugation Machine

Specifications

High speed Single Facer Paper CorrugatingMachine with latest Technology. Flute Rolls are minutely finished and mounted on spherical Roller Bearings, to give perfect impression on Board. With self loading twin shaft reel stand, And has more production capacity and efficiency than vertical type.

Size Motor H.P. Heating Load Floor Space Height Wt. App. Output RFT/minute
45" 7.5 21KW 95"X175" 76" 4.0MT 100
52" 7.5 30KW 102"X175" 76" 4.5MT 100
62" 10.0 36 KW 109"X180" 80" 5.5MT 100

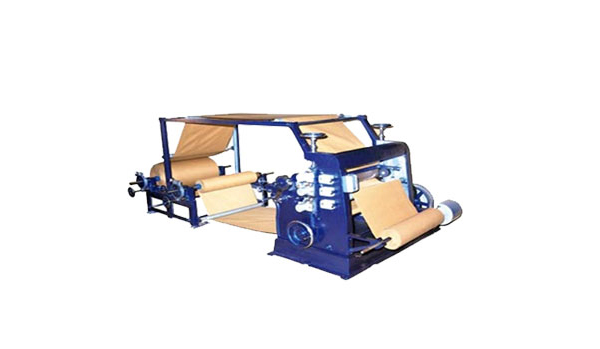

Vertical Type Single Facer Paper Corrugation Machine

Features

Single facer paper corrugating machine. Bush mounted for manufacturing 2 ply corrugated board, simple to operate with manual loading twin shaft reel stand.

Size Motor H.P. Heating Load Floor Space Height Wt. App. Output RFT/minute
42" 3 21KW 90''X165'' 76'' 3.0 MT 60
45'' 3 21KW 90''X165'' 76" 3.5 MT 60
52'' 5 27KW 102''X165'' 76'' 4.0 MT 60
62'' 5 27KW 115''X180'' 80" 4.5 MT 60
