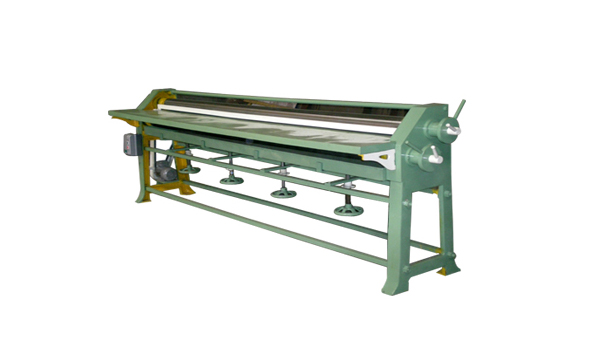

Sheet Pasting Machine

Specifications

Pasting Machine is useful for gluing the fluted side of the board and for pasting board to paper as will as to board for making 3-5-7 ply board. The model of this machine is different than the others and is full-enclosed model. The Machine is adjustable by rotating handle provided on one side of machine.

Size	SPEED	POWER REQUIRED	FLOOR SPACE	HEIGHT	GROSS WEIGHT
65''	150RPM	O.5 H.P.	80''X30''	50''	500KG
75''	150RPM	O.5 H.P.	90''X30''	50''	600KG
85''	150RPM	1.0 H.P.	100''X30''	50''	700KG
95''	150RPM	1.0 H.P.	110''X30''	50''	800KG
105''	150RPM	1.0 H.P.	120''X30''	50''	900KG

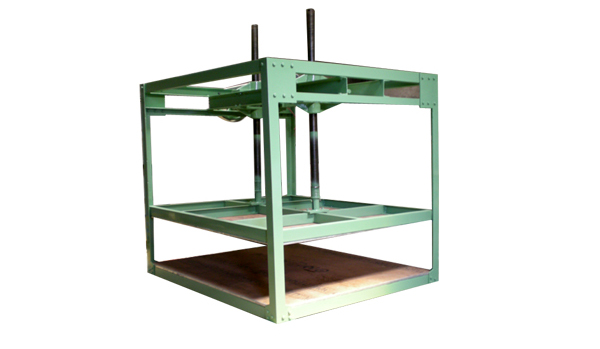

Sheet Pressing Machine

Specifications

Sheet Pressing Machine is used for pressing of Corrugated Sheets. The glued sheets which are processed on pasting machine are piled on lower plate and then pressure is applied for some time by lowering upper moving plate.

Size	PRESSING HEIGHT APP.	HEIGHT OF MACHINE	FLOOR SPACE	WEIGHT APP.	POWER REQUIRED
65''X75''	0-55''	85''	70''X85''	1600KG'	2 H.P.
65''X105''	0-60''	95''	70''X110''	2400KG'	3 H.P.

Eccentric Slotter Machine

Specifications

Size	CAPACITY	MIN. SPACE	MAX. SPACE	CORNER WIDTH	POWER	FLOOR SPACE	GROSS WEIGHT
Size	CAPACITY	Between Slots	Between Slots	CORNER WIDTH	REQUIRED	FLOOR SPACE	GROSS WEIGHT
65''	30''	5''	14''	2.75''	2 H.P.	90''X54''	1600KG
75''	30''	7''	17''	3.5''	3 H.P.	100''X56''	2100KG
85''	30''	7''	18''	3.5''	3 H.P.	110''X56''	2300KG
95''	30''	8''	21''	4'''	5 H.P.	120''X60''	2500KG
105''	30''	8''	21''	4'''	5 H.P.	130''X60''	2700KG
