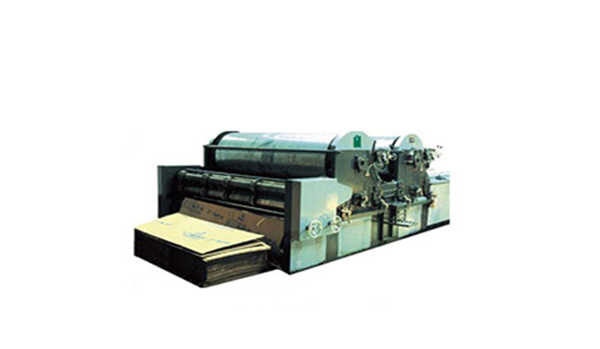

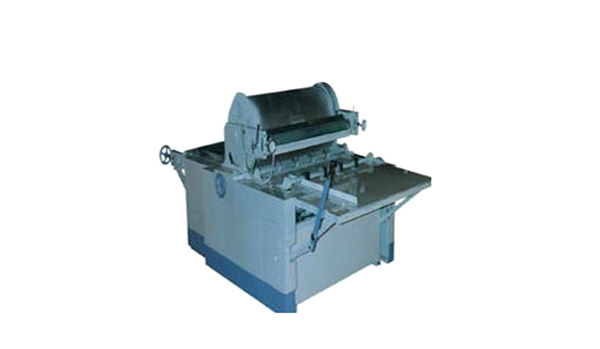

This equipment provides 1-4 Colour Printing. High precision anilox roll is fixed. Chain drive feeding of Sheet is provided. Single sheet manual feeding is there. Ideal for printing on kraft paper & Corrugated Board. Uniform spreading and controlled flow of ink. Slittering and scoring unit is optional.
| Board Size | Dimensions ( Lx H x W)Single Colour | Power Required |
| 50" x 70" | 123" x 79" x 58" | 2HP |
| 52" x 72" | 126" x 81" x 59" | 2HP |
| 52" x 84" | 143" x 81"x 63" | 3HP |
| 64" x 84" | 143" x 93"x 63" | 3HP |
| 64" x 100" | 159" x 93" x 63" | 3HP |
| 65" x 125" | 185" x 93" x 79" | 7.5HP |
Specifications
Flexo Printer is designed to help corrugated box manufacturers to keep pace with the demand for sharp and excellent printing on corrugated boxes. Incorporating the latest technology, Flexo Printer prints better and dries aster resulting in increased production. The transfer of image is accomplished through Rubber / Nylon / Photo polymer Stereo of 2. 8 mm / 4. 7 mm thickness, using liquid water - based or thinner - based inks. For Printing Kraft paper and corrugated boards. Only our machine can print both the paper and corrugated boards. Distinct and precise impression, instant drying, extremely simple to operate, easy accessibility for cleaning. For Forprinting Kraft paper &corrugated boards Distinct & precise impression, instant drying, extremely simple to operate, Easy accessibility for cleaning.
