Products

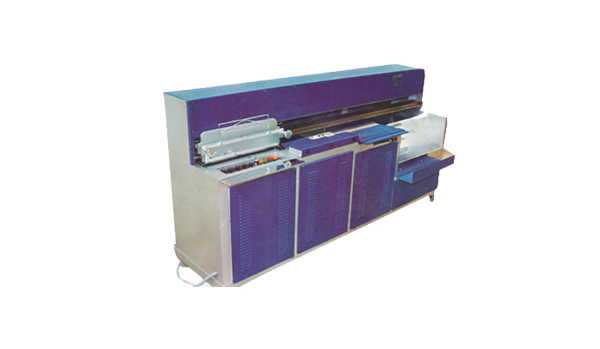

Perfect Book Binding Machine

Specifications

Weight Net Weight: 150 KGs
Gross Weight: 250 KGs
Machine Size  Length: 32"
 Width: 28"
 Height: 54"
Stitch Speed 180 Stitches per Minute
Stitching Capacity 0.1mm to 16 mm
Motor 1/2 H.P. Single or Three Phase
Wire Required 26 S.W.G. to 20 S.W.G
 Packing Box Size 52"X33"X32"

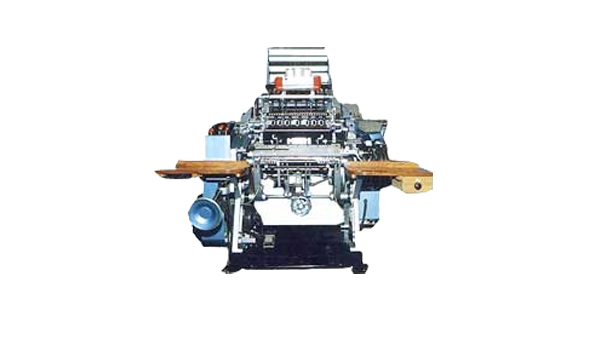

Thread Book Sewing Machine

Features

Backed by decades of research and innovative work, Thread Book Sewing Machine Model FEC 3000 has been established as top level production leaving conventional stitcher for behind. The Machine is provided with latest technology and functions. It is fully enclosed, compact and robust in construction, reliable efficiency and capable for even the intricate block construction. It has very good accessibility to all structural units. The machine is absolutely free from risk prone possibilities as the same has been provide with ELECTRO MAGNETIC system for instant magnetic brake in adverse conditions. The machine contributes to good psycho logic and physiologic working conditions. Due to auto fed lubrication device, the machine free from general maintenance, resulting in good quantum of production.

Max.Size of the Book
420 x 250 mm (161/2" x 97/8")
Min.Size of the Book 115 x 100 mm (4 1/2" x 37/8")
Speed  upto 70 sections per minute
Power Required 0.37 kw (1/2 hp),1400 rpm
Net Weight Approx. 675 Kg
Gross Weight Approx. 910 Kg
