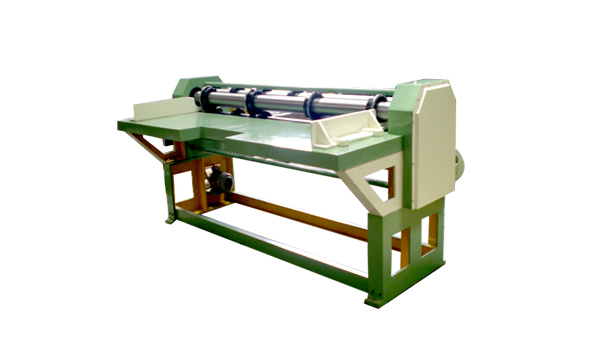

4 Bar Rotary Cutting & Creasing Machine

Specifications

Four Bar Rotary Cutting and Creasing machine is useful for creasing and cutting simultaneously. The machine is with two pairs of shafts. The front pair is with cutting dies and rear pair is with creasing die. The lower shaft of each pair can be raised or lowered by revolving side wheel. For easy feeding two guides are provided

Size	SPEED/MINUTE	MIN DISTANCE	POWER REQUIRED	FLOOR SPACE	GROSS WEIGHT
Size	SPEED/MINUTE	BETWEEN TWO DIES	POWER REQUIRED	FLOOR SPACE	GROSS WEIGHT
65''	300	3"	1.5 H.P	85''X52''	1700 KGS
75''	300	3"	2 H.P.	98''X52'''	2100 KGS
85''	300 FT/MIN	3"	2 H.P.	110''X52''	2300 KGS
95''	300	3"	2 H.P.	120''X60''	2500 KGS
105''	300	3"	3 H.P.	130''X60''	2700 KGS
125''	300 FT/MIN	3"	3 H.P.	150''X70''150''X70''	3200 KGS

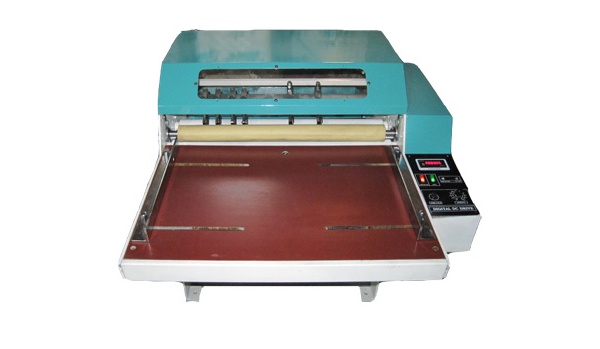

Rotary Half Cutting Creasing

Specifications

This machine cuts the upper printed paper first in one direction & then this sheet is cut perpendicular to the first direction without cutting the back paper to a perfect set size of the label.For an even cutting depth the machine is fitted with hardened and grinded steel bar with disc type cutting blade & setting the cutting depth of cutter up to the thickness of the upper printed sheet is very easy & simple by means of a knob & the speed of cutting is controlled electronically by a potentiometer fitted on control penal.

PERFORATER,CREASER : This Half Cut Sticker Label Cutting Machine is a multipurpose & can be easily converted to ROTARY DISC SLIT PERFORATER & CREASER for perforation as on Bankers cheque book & creasing, bending on wedding cards & Book title creasing.

The Size of machine is 24" 1 Perforater,1 Creaser & 6 Half Cut Cutters are standard supply. It may be interchanged to each other as per customer requirements. The machine can be ordered for different numbers of perforating discs, may be four or six or eight. Eight holders is standard supply, it may be all half cuts or Creaser or Perforators. Minimum gap between two cutters is 3/4"& about 23 holders can be fitted on this machine as an Optional requirements which is most useful in Half cutting. While ordering please specify your requirement Clearly for what main purpose the machine is needed. The machine can be tailor made to any size and any requirements as mentioned.
