Weight | Net Weight: 150 KGs |
Gross Weight: 250 KGs | |
Machine Size | Length: 32" Width: 28" Height: 54" |
Stitch Speed | 180 Stitches per Minute |
Stitching Capacity | 0.1mm to 16 mm |
Motor | 1/2 H.P. Single or Three Phase |
Wire Required | 26 S.W.G. to 20 S.W.G |
Packing Box Size | 52"X33"X32" |

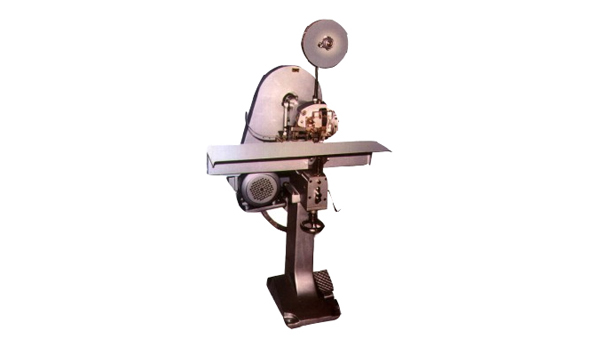

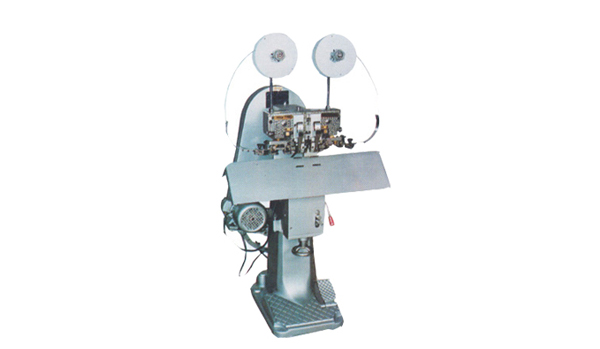

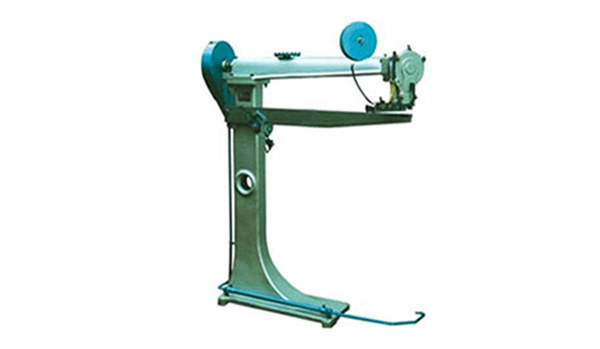

Our box stitching machine is most suitable for cardboard and corrugated boxes which are available in angular and straight model. We produce box stitching machines in various sizes of arm length like 20", 30", 36", 42" & 48". They also have an adjustable feed up to 5/16 and 350 stitches per minute with a power back up of 1/2 H.P. electric motor.
Specifications
Width: 28"
Height: 54"
0.1mm to 6 mm for Loop Stitch
